Making a Shiny Metallic Button


Making a Shiny Metallic Button

Here, I’m going to show you how to create shiny,
metallic buttons like the ones shown to the right.
I’ll also show you how you can vary their
appearance using different settings.
Solution

1 Create a raster or vector button. I’ve created both
a rounded and rectangular button in this example.
The color of the button is unimportant, as it won’t
affect the final result.

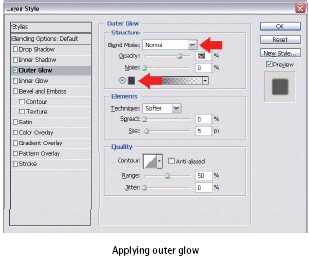

2 The fun begins! Open the Layer Style dialog box by clicking on the Add a layer style
button at the bottom of the Layers palette and selecting Outer Glow from the menu
that appears. In the dialog box, change the Blend Mode to Normal, and click on the
color swatch (light yellow by default) and change it to gray, as shown here.


3.Now, select Stroke from the styles
list in the dialog box to add a
stroke layer effect. I used a dark
gray, 1px stroke, as shown here.
4 We’re ready to add the gradient
overlay (there go those gradients
again!). Select Gradient Overlay
from the Styles list in the dialog
box, and double-click on the
gradient color swatch to open
the Gradient Editor dialog box. Set the
colors of the gradient as I’ve done overleaf.
Add more color patches to the gradient bar by clicking anywhere along the bottom
of it. Edit the color of a patch by double-clicking on it to bring up the Color Picker.
You can also click and slide color patches to adjust the appearance of your gradient.


5 Click OK to apply all the layer styles.

Your shiny, metallic button is complete! Turn
off the Stroke style for a more subtle effect
(uncheck its checkbox to do so)—I did this for
the left button in the examples shown here.
Variations
You can vary the appearance of your shiny button by playing with the gradient editor
settings. The examples below show how the look of our shiny button changed when
different gradient configurations were applied.
